PLX Kiwi 2 IMFD Adapter
PLX Kiwi 2 IMFD Adapter

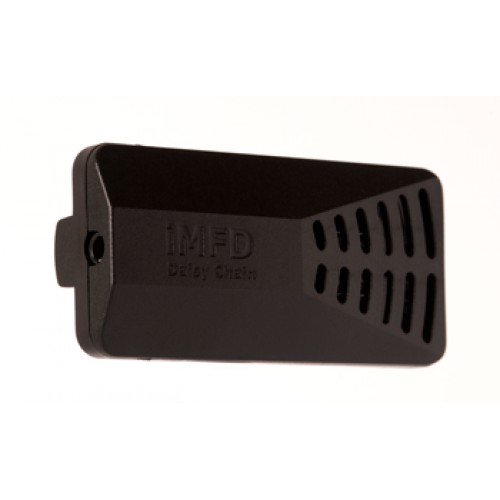

The Kiwi 2 iMFD Adapter is compatible with the Kiwi 2 Wifi or Kiwi 2 Bluetooth and enables you to add additional aftermarket sensors for viewing on your iOS mobile device. This is ideal if your OBDII port does not report the sensors you need or if the OBDII port reports the sensor at a refresh rate unsuitable for your application. With the iMFD adapter, it combines the best of both worlds of plug and play obtaining sensor data from your OBDII port and aftermarket high performance sensors designed for speed, accuracy, high resolution and more extreme conditions typically not supported by your OEM sensors.
iMFD Adapter Daisy Chain solution allows you to connect up to 16 sensor modules in any combination. For turbo and supercharged applications the most popular sensor modules consist of the SM-AFR, SM-Vac/Boost, and SM-EGT. These three modules allow you to monitor your precise air/fuel ratio (AFR), your vacuum and boost levels for forced induced engines, and your exhaust gas temperature. These three parameters are vital to monitoring the health of an internal combustion engine. Additional sensor modules from PLX are available to monitor fluid temperature, fluid pressure and air intake temperature.
Features
Works with Kiwi 2 Wifi and Kiwi 2 Bluetooth
Plug and Play
Maintains constant refresh rate regardless of number of sensors in daisy chain
Advanced power saving and sleep circuitry
Kiwi Bluetooth is compatible with these apps
DashCommand for Apple iOS and Android Devices by Palmer Performance
Rev by Devtoaster
ScanXL™ Professional by Palmer Performance
Product videos
Included items
Kiwi 2 iMFD Adapter Main Unit
User Manual
* All applications are downloaded through the Apple App Store. Some apps may need to be purchased separately from the Kiwi Wifi.
Technical Specifications
Physical Dimensions: 1.25 x 2.72 x 0.60 inches
Power Consumption: 1.24 Watts (Typical), 0 Watts (Sleep)
Power Saving: Intelligent low power sleep circuitry
iMFD Protocols: 19,200 Baud 3.3V TTL
Compatible Sensors: All PLX Sensor Modules
Operating Temperature: 0 - 80 Degress Celsius
Required Devices: Kiwi 2 Wifi
iMFD Interface: 2.1mm Stereo Jack
Enclosure: Automotive Grade Plastic
OBDII Sensors
Depending on your vehicle and the application that you choose to use, sensor support will vary. However in most vehicles the following sensors are reported through the onboard diagnostic port.
RPM
Vehicle Speed
Throttle Position
Engine Load
Absolute Engine Load
Engine Timing
Air Intake Temperature
Coolant Temperature
Ambient Air Temperature
Intake Pressure (MAP)
Air Flow (MAF)
Fuel Pressure
Fuel Pressure Relative
Fuel Level
Barometric Pressure
Catalytic Converter Temperature
ECU Voltage
OBD Type
Short Term Fuel Trim (Bank 1)
Long Term Fuel Trim (Bank 1)
Short Term Fuel Trim (Bank 2)
Long Term Fuel Trim (Bank 2)
Oxygen Sensor Voltage1 (Bank 1)
Oxygen Sensor Voltage1 (Bank 2)
Oxygen Sensor Voltage2 (Bank 1)
Oxygen Sensor Voltage2 (Bank 2)
iMFD Sensors
| Sensor | Address | Units | Min | Max |
|---|---|---|---|---|
| Wideband O2 | 0 | 0 - Lambda | 0.68 | 1.36 |
| 1 - Gasoline (14.7) | 10 | 20 | ||
| 2 - Diesel (14.6) | 9.93 | 19.86 | ||
| 3 - Methanol (6.4) | 4.35 | 8.7 | ||
| 4 - Ethanol (9.0) | 6.12 | 12.24 | ||
| 5 - LPG (15.5) | 10.54 | 21.08 | ||
| 6 - CNG (17.2) | 11.7 | 23.39 | ||
| 7 - E85 (9.76) | 6.64 | 13.27 | ||
| Exhaust Gas Temp | 1 | 0 - Celsius | 0 | 1023 |
| 1 - Fahrenheit | 32 | 1873 | ||
| Fluid Temp | 2 | 0 - Celsius Water | 0 | 150 |
| 1 - Fahrenheit Water | 32 | 302 | ||
| 2 - Celsius Oil | 0 | 150 | ||
| 3 - Fahrenheit Oil | 32 | 302 | ||
| Vacuum | 3 | 0 - Vac in/Hg | 29.93 | 0 |
| 1 - Vac mm/Hg | 760 | 0 | ||
| Boost | 4 | 2 - Boost 0-30 PSI | 0 | 30 |
| 3 - Boost 0-2 kg/cm2 | 0 | 2.07 | ||
| 4 - Boost 0-15 PSI | 0 | 15 | ||
| 5 - Boost 0-1 kg/cm2 | 0 | 1.12 | ||
| 6 - Boost 0-60 PSI | 0 | 60 | ||
| 7 - Boost 0-4 kg/cm2 | 0 | 4.22 | ||
| Air Intake Temp | 5 | 0 - Celsius | 0 | 150 |
| 1 - Fahrenheit | 32 | 302 | ||
| RPM | 6 | 0 - 8k | 0 | 8000 |
| 1 - 12k | 0 | 12000 | ||
| 2 - 20k | 0 | 20000 | ||
| Speed | 7 | 0 - MPH | 0 | 160 |
| 1 - km/H | 0 | 258 | ||
| Throttle Position | 8 | 0 - Percent | 0 | 100 |
| Engine Load | 9 | 0 - Percent | 0 | 100 |
| Sensor | Address | Units | Min | Max |
|---|---|---|---|---|
| Fluid Pressure | 10 | 0 - PSI Fuel | 0 | 120 |
| 1 - kg/cm2 Fuel | 0 | 8.44 | ||
| 2 - Bar Fuel | 0 | 8.27 | ||
| 3 - PSI Oil | 0 | 120 | ||
| 4 - kg/cm2 Oil | 0 | 8.44 | ||
| 5 - Bar Oil | 0 | 8.27 | ||
| Timing | 11 | 0 - Degree | -64 | 64 |
| Manifold Absolute | 12 | 0 - kPa | 0 | 255 |
| Pressure (MAP) | 1 - inHg | 0 | 75.3 | |
| Mass Air Flow (MAF) | 13 | 0 - g/s | 0 | 655.35 |
| 1 - lb/min | 0 | 86.69 | ||
| Short Term Fuel Trim | 14 | 0 - Percent | -100 | 100 |
| Long Term Fuel Trim | 15 | 0 - Percent | -100 | 100 |
| Narrowband O2 | 16 | 0 - Percent | 0 | 100 |
| 1 - Volts | 0 | 1.275 | ||
| Fuel Level | 17 | 0 - Percent | 0 | 100 |
| Volt Meter | 18 | 0 - Volts | 0 | 20 |
| Knock | 19 | 0 - Volts | 0 | 5 |
| Duty Cycle | 20 | 0 - Positive | 0 | 100 |
| 1 - Negative | 0 | 100 | ||
| Fuel Efficiency | 21 | 0 - MPG | 0 | 100 |
| 1 - KM/L | 0.43 | 42.51 | ||
| 2 - L=100KM | ||||
| Analog Voltage | 22 | 0 - Volts | 0 | 5 |
| Speed (Hertz) | 23 | 0 - Hz | 0 | 10,230 |
